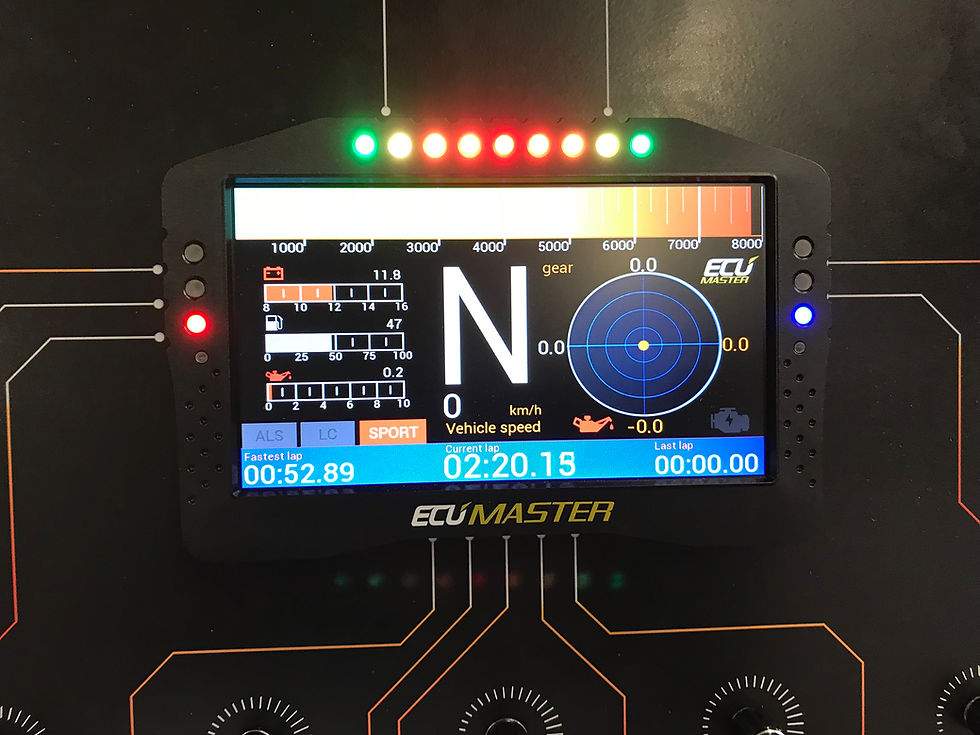

The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.) and changed manually or automatically (based on an advanced conditions system). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified using user-friendly, Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independently of the actual page displayed.
Features | |
Lap timer: | Lap timer with memory, predictive timing, triggered by a beacon or GPS |
Customization: | 48 available pages, user defined content, custom graphics allowed |
Functions: | User configurable maths and logic |
Overlays: | Yes user defined |
CAN stream: | User defined, up to 48 input messages, predefined streams for popular ECUs |
General specification | |
Operating voltage: | 6-22V, immunity to transients according to ISO 7637, with reverse polarity protection |
CPU: | 32 bits, automotive, 90MIPS |
Temperature range: | -30°C to 80°C |
Enclosure: | Anodized aluminium, CNC machined, IP61 |
Connection: | Automotive 36-way AMP |
ADU 5": | Antiglare TFT, 800x480, active area 108x64.8 mm, luminance 600 cd/m2 |
ADU 7": | Antiglare TFT, 800x480, active area 154.08x85.92 mm, |
Alarms: | 15 x ultrabright RGB LEDs used for alarms and shift lights |
Communication | |
CAN: | 2x CAN 2.0B (250, 500, 1000 kbps) independent |
Serial: | RS232 (Rx, Tx) |
USB: | Yes, for data logging |
Inputs | |
Analog: | 8 analogue inputs, 10 bits, 500Hz, software selectable pullups/pulldowns |
digital | 8 inputs with user defined sensitivity |
Outputs | |
Aux outputs | 2 x protected 3A low side outputs |
Logging | |
Memory: | USB Flash Memory |
Rate: | do 500Hz na kanał |
Clock | Yes |
Others | |
Accelerometer: | 3 axis gyro and 3 axis acceleration |
Light sensor: | Yes for auto brightness functionality |
Temperature sensor: | Built in to trace device internal temperature |
Real time clock: | yes with internal power supply |
